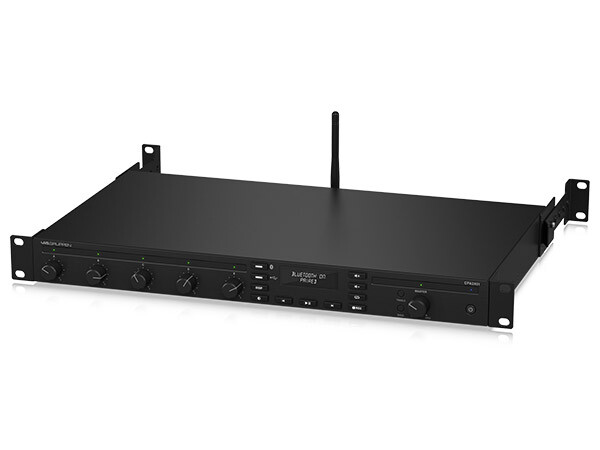

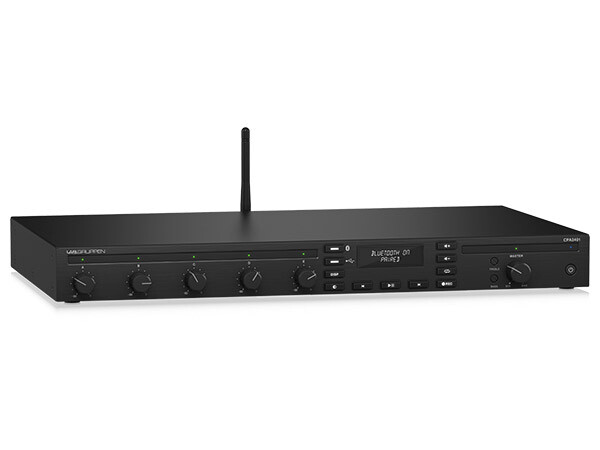

Lab Gruppen CPA2401 - 240 Watt Commercial Mixer Amplifier with 5 Inputs, Bluetooth Streaming, USB Media Player

SKU: 000-DAJ04-00010

Be the first to write a review!

Out of Stock - Available to Order

Write a review

£530.27

£441.89 (Ex VAT)

The Lab Gruppen CPA2401 is a 240 Watt Commercial Mixer Amplifier that provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations offering extreme flexibility on every channel. CPA2401 is easy to install and operate – even for non-technical personnel. Simply put, the CPA2401 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.

• 240 Watt mixer amplifier for commercial and industrial applications
• Low-Z (4/8 Ohm) and High-Z (70/100 V) operation with switchable high-pass filter
• 3 mic/line inputs plus 2 line inputs each with individual volume controls and output routing
• High-quality media playback via Bluetooth streaming
• USB media player with intuitive LCD navigation to play audio files via USB stick
• Individual front panel master volume and bass/treble controls
• Configurable priority and chime muting function for background music override
• Direct drive, constant power technology for superior audio performance and reliability
• GPI remote volume control using standard RJ-45 connector and Ethernet cable
• Auto Ramp circuitry for quiet and fast power up/down enables realworld energy savings
• Front panel power control button for direct access
• Aux output for expansion to additional amplifiers
• Rack-mountable 1U, 19" enclosure with brackets for rack mounting
• Euroblock type mic/line input and output connectors
• Convection-cooled, fan-less amplifier technology for low noise

Sections

£530.27

Technical Specification

  • MAXIMUM OUTPUT POWER
  • 4 or 8 Ω per channel 240 W
  • Number of Amplifier Channels 1
  • MINIMUM LOAD IMPEDANCE
  • 4 Ω mode 4 Ω
  • 8 Ω mode 8 Ω
  • 70 V output mode 20 Ω
  • 100 V output mode 42 Ω

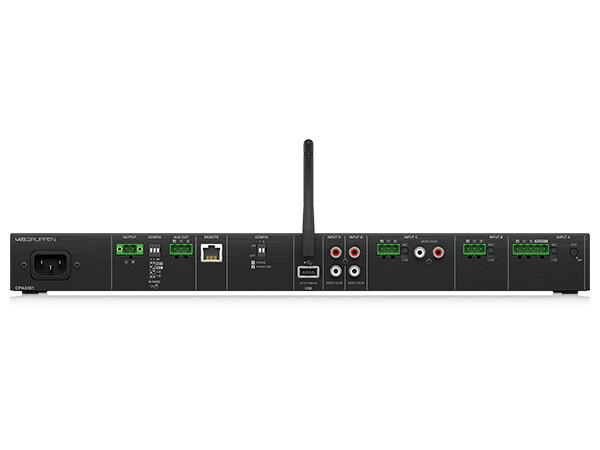

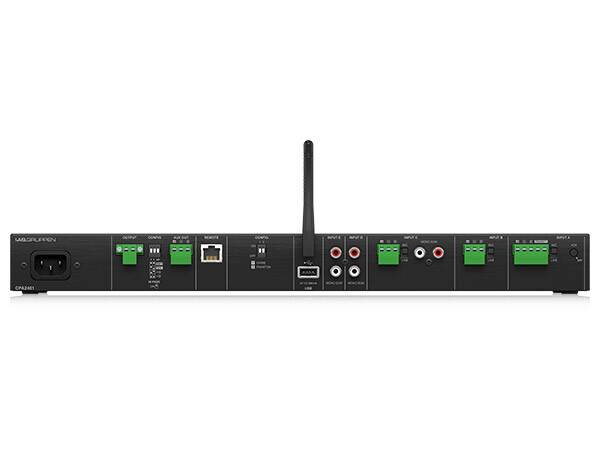

  • AUDIO OUTPUTS
  • Amplifier output 2-pin Euroblock connector, stereo
  • Aux output 3-pin Euroblock connector
  • Aux output max level 4.88 V (16 dBu)
  • AUDIO INPUTS
  • Mic/Line with priority/ducking input 1 x 5-pin Euroblock connector (channel A)
  • Mic/Line with summed RCA 2 x 3-pin Euroblock connector, 3 x stereo RCA
  • Impedance Balanced mic/line: 20 kΩ / Unbalanced line and RCA: 10 kΩ
  • Input sensitivity for max amplifier output or max aux output level Mic: 0.038 V (-26 dBu) / Balanced: 1.23 V (+4 dBu) / RCA: 0.62 V (-2 dBu) each for mono sum RCA
  • Maximum input level 4.88 V (+16 dBu)
  • Microphone phantom voltage 48 V
  • CONTROLS
  • Front Power standby button, input and output gain control, tone controls - bass and treble, bluetooth audio controls
  • Rear Load config - (4 Ω/8 Ω/70 V/100 V), switchable 80 Hz high-pass filter, mic/line switch, vox/ducking threshold control, phantom voltage, input routing (2-channel models only)
  • TONE CONTROLS
  • Bass ±10 dB @ 100 Hz
  • Treble ±10 dB @ 10 kHz
  • INDICATORS
  • Power On (blue), force standby (red), standby (yellow)
  • Inputs
  • Signal (green LED) >12.3 mV (-36 dBu)
  • Fault (red LED) Clip
  • Master
  • Signal (green LED) >-50 dBu
  • Fault (red LED) Overheat, DC fault, over current, etc
  • BLUETOOTH
  • Frequency range 2402 - 2480 MHz
  • Channel number 79
  • Bluetooth version 4.2
  • Reception range Up to 15 m (45 ft)
  • Output power 10 dBm
  • Supported codec SBC
  • Supported profiles AVRCP 1.4, A2DP 1.2
  • USB DRIVE REQUIREMENTS
  • Type USB 2.0
  • Min capacity 1.0 GB
  • Min speed 12 MB/s read, 7 MB/s write
  • Supported file formats AAC, WMA, MP3, WAV
  • SYSTEM
  • Output circuit type Class D
  • Remote connector 1 x RJ45 Ethernet connector
  • PERFORMANCE
  • Distortion, 1/8 rated power <0.5%
  • Frequency response 20 Hz to 20 kHz, +0.5/-2 dB
  • Crosstalk (2 channel models) >70 dB
  • Signal-to-noise >95 dB
  • High-pass filter 80 Hz HPF
  • CIRCUIT PROTECTION
  • Cooling Convection-cooled, fanless
  • Amplifier protection Thermal protection, over current protection, DC protection
  • Load protection Controlled start and shutdown behaviour, DC-fault protection
  • POWER SUPPLY, VOLTAGE (FUSE)
  • Main voltage 100-240 V~, 50/60 Hz
  • Fuse T 6.3 A L 250 V
  • Power consumption 1/8th rated power @ 4 Ω 60 W
  • Mains connector Standard IEC connector
  • PHYSICAL
  • Dimensions (H x W x D) 44 x 437 x 248 mm (1.7 x 17.2 x 9.8")
  • Weight 3.2 kg (7 lbs)
