Eight Zones at Three Acres - Gastropub Upgrades to AtlasIED Atmosphere AZM8P

POLAR supplies AtlasIED Atmosphere system for Posynergi installation at multi-use Yorkshire inn…

Set in the rolling Pennine countryside at Roydhouse near Huddersfield, the Three Acres has been a family run inn since 1968. Having built an enviable reputation as a destination gastro-pub, the building suffered a catastrophic fire in late 2023 which saw it close for an extended period of time, during which it was completely refurbished. After overcoming this significant challenge to its existence, the pub has returned stronger than ever with a brand new layout, much to the delight of customers new and old. As well as its excellent culinary offer, the pub also hosts weddings, private events, and live entertainment.

Recognising the importance of having a good audio system throughout the venue, the Three Acres Team engaged regular provider and AV integrator Posynergi of Huddersfield, to supply and install a high quality, flexible, zoned sound system, which could cater seamlessly for the varying demands of the pub’s offer. At its heart was an AtlasIED Atmosphere 8-zone signal processor supplied by AtlasIED’s UK distributor POLAR, who supported the project with design assistance and commissioning.

“The goal was to deliver exceptional sound quality, simple control for staff, and flexible input options for visiting entertainers, all without compromising the venue’s elegant aesthetic. In total, there were seven independent audio zones, each designed to meet specific operational and acoustic needs. These comprised a bar area, private dining room, function room, reception area, corridors, restrooms, and outdoor terrace, all of which had distinctly contrasting requirements, including background music, live performance, DJ sets, streamed playlists, presentations and speeches.”

– Mark Bracken, Business Development Manager, POLAR

To achieve the required flexibility, the system was built around the AtlasIED Atmosphere digital audio platform. Its modular design and intuitive control made it the ideal choice for this busy hospitality setting in which members of staff are able to easily and efficiently manage the different spaces throughout their shifts.

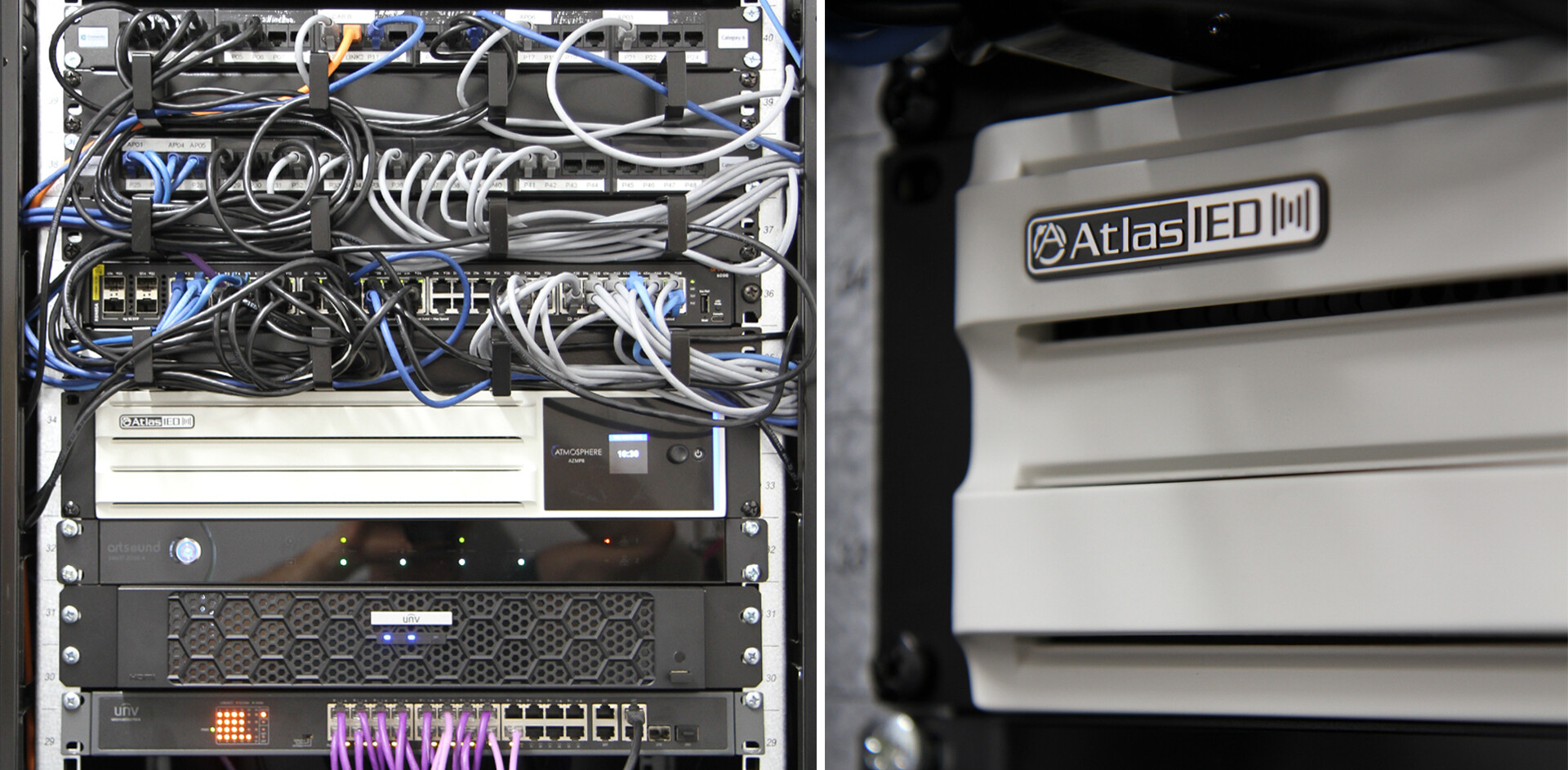

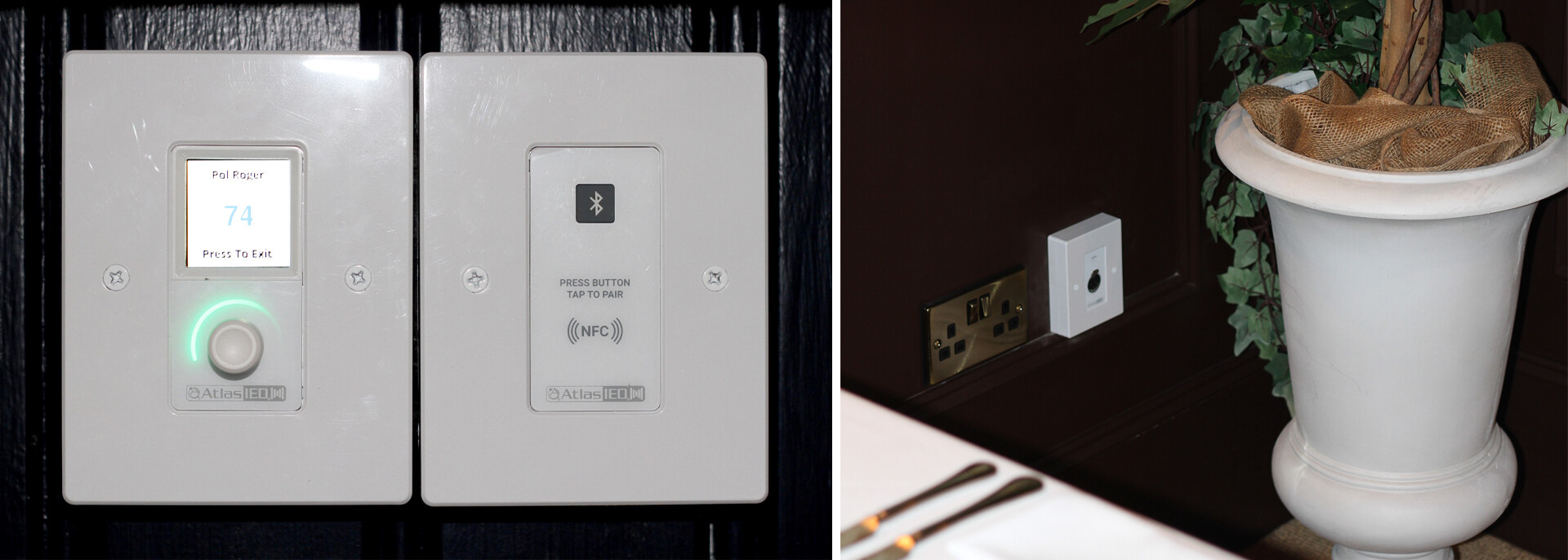

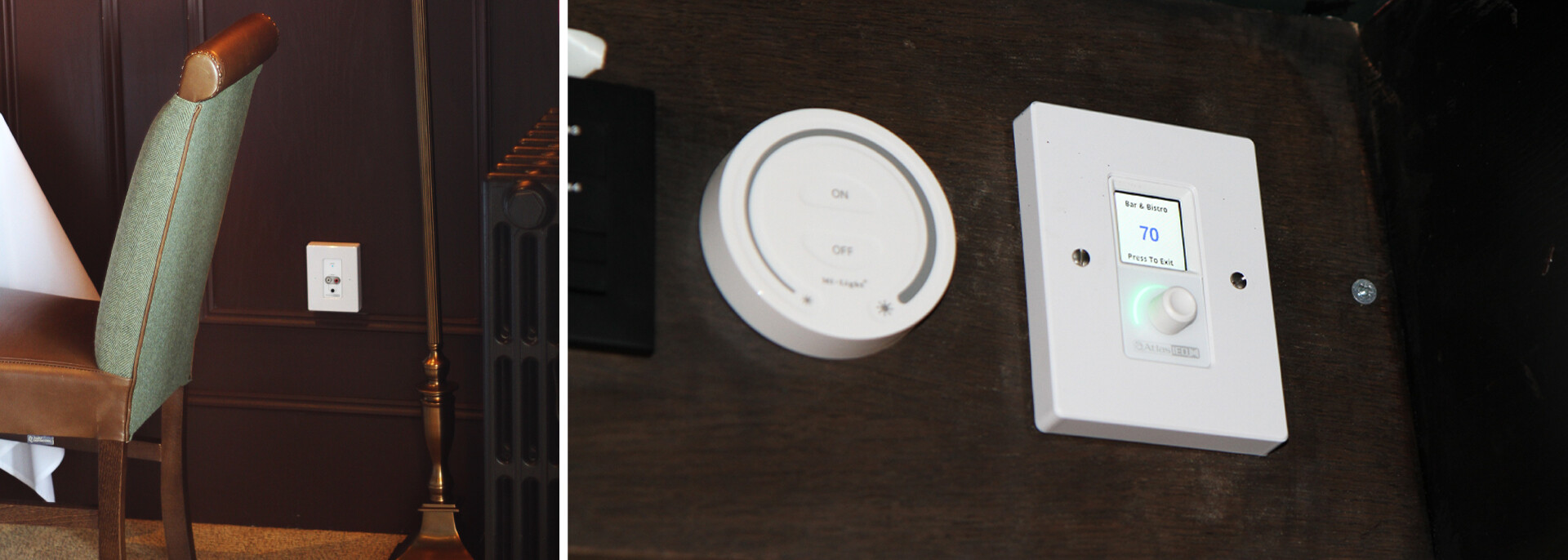

Posynergi installed an AtlasIED 8 zone AZM8P Audio Processor with built in amplification, providing DSP, zone-routing, and source control for all seven areas. A number of Atlas IED zone controllers were discreetly wall-mounted in key locations, enabling easy adjustment and source selection. AtlasIED Remote Input Panels (XLR/RCA) were installed in the function suite and bar, giving performers plug-and-play connectivity, whilst an Atmosphere Bluetooth receiver located in the private dining area allowed guest music streaming. An ArtSound SMART ZONE 4 (4 room multi room streamer) also supplied by POLAR provides four channels of online music source.

Mark Bracken continues:

“The installation was carefully coordinated to fit in with the overall refurbishment, and whilst the design evolved as the refit took shape, Posynergi worked with great flexibility to adapt the system on the fly, coordinating with the venue’s requirements to complete a modern audio infrastructure.”

Steve Cartlidge of Posynergi adds:

“The Three Acres Inn now boasts a state-of-the-art distributed audio system which enhances ambience, simplifies operations, and supports every facet of its hospitality offer. We worked closely with POLAR’s Mark Bracken to design and commission the system. The Atmosphere’s web-based configuration allowed seamless commissioning and remote tuning, ensuring optimal sound balance through the venue.”

With a new audio system delivering clear, even sound across its seven zones, the staff at the Three Acres are easily able to tailor music levels and content in real time to suit the required atmosphere, covering every base from relaxed dining in the restaurant to lively events in the function room, with visiting musicians, DJs, and private parties all expressing their appreciation of convenient connectivity and reliable sound quality.

“The new AtlasIED system has transformed how we manage music and events at the venue. Every area of the inn now sounds incredible, and our staff can control it all effortlessly. It’s flexible, reliable, and perfect for our day-to-day operations and private events.”

– Tom Truelove, Owner, Three Acres
