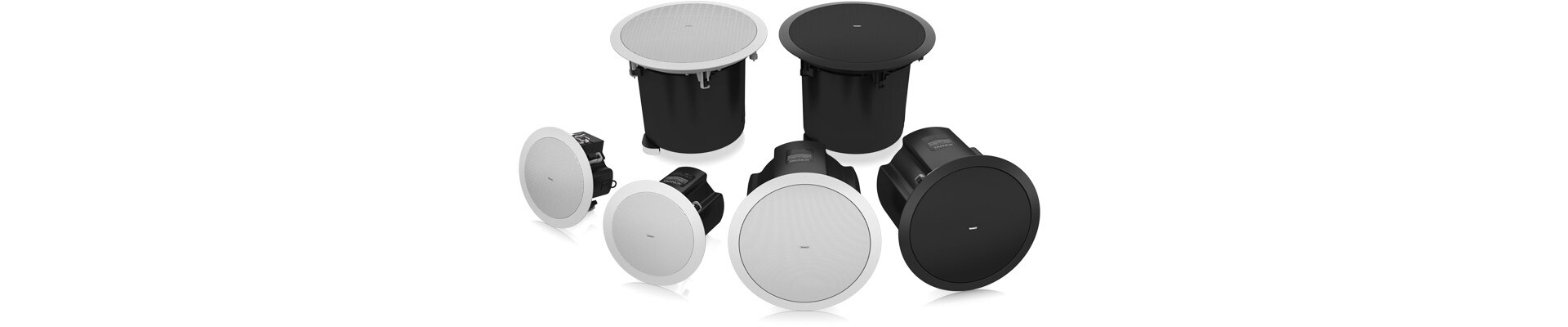

Tannoy CVS Series Ceiling Speakers
The CVS Series coaxial ceiling loudspeakers are designed for installation applications
The Tannoy CVS Series ceiling loudspeakers are engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, CVS Series Speakers offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding.
Exceptional clarity and coverage
The Tannoy CVS Series ceiling loudspeakers represent a pinnacle in audio technology, seamlessly blending high-performance sound reproduction with discreet and stylish design. These speakers are engineered to deliver exceptional clarity and coverage, making them ideal for a variety of applications, including commercial spaces, corporate environments, and hospitality settings. With their innovative coaxial driver technology, the CVS Series ensures a uniform and immersive listening experience, while the low-profile design allows for unobtrusive integration into any ceiling space.
TANNOY CVS 4
4" Coaxial In-Ceiling Loudspeaker
• Coaxial full range ceiling loudspeaker for installation applications
• 40 Watts continuous, 160 Watts peak power
• 4" mineral loaded polypropylene driver with nitrile rubber surround
• Wide constant directivity dispersion for optimum coverage
• UL 1480 certified for fire-protected signalling systems
• UL 2043 certified for air-handling spaces
TANNOY CVS 401
EN54-24 Certified 4" Coaxial In-Ceiling Loudspeaker
• EN54-24:2008 certified Type A
• 30 Watts continuous, 120 Watts peak power
• 4" polypropylene driver with butyl rubber surround
• 0.75" ferrofluid-cooled soft dome high-frequency driver
• UV and weather resistant
• Powder-coated aluminum mesh grille with dust protection
TANNOY CVS 4 MICRO
4" Coaxial In-Ceiling Loudspeaker with Shallow Back Can
• Coaxial full range low profile ceiling loudspeaker
• 40 Watts continuous, 160 Watts peak power
• Shallow back can for limited cavity space
• 4" mineral-loaded polypropylene driver with nitrile rubber surround
• Mounting C-ring and ceiling tile rails included
• Low insertion loss 15 W line transformer with easily accessible tapping switch
TANNOY CVS 6
6" Coaxial In-Ceiling Loudspeaker
• Coaxial full range ceiling loudspeaker for installation applications
• 60 Watts continuous, 240 Watts peak power
• 6" mineral-loaded polypropylene driver with nitrile rubber surround
• UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
• Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
• Wide constant directivity dispersion for optimum coverage
TANNOY CVS 601
EN54-24 Certified 6" Coaxial In-Ceiling Loudspeaker
• EN54-24:2008 certified Type A
• 50 Watts continuous, 200 Watts peak power
• Available in black or white
• 6.5" polypropylene driver with butyl rubber surround for enhanced durability and long-term reliability
• 0.75" ferrofluid-cooled soft dome high-frequency driver
• The perfect choice where safety is a top priority
TANNOY CVS 8
8" Coaxial In-Ceiling Loudspeaker
• Coaxial full-range ceiling loudspeaker for installation applications
• 60 Watts continuous, 240 Watts peak power
• 8" mineral loaded polypropylene driver with nitrile rubber surround
• UL 1480 certified for fire-protected signalling systems
• UL 2043 certified for air-handling spaces
• UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
TANNOY CVS 801
EN54-24 Certified 8" Coaxial In-Ceiling Loudspeaker
• EN54-24:2008 certified Type A
• The perfect choice where safety is a top priority
• 90 Watts continuous, 360 Watts peak power
• 8" polypropylene driver with butyl rubber surround for enhanced durability and long-term reliability
• 1" ferrofluid-cooled soft dome high-frequency driver
• Semi-matte white finish fits unobtrusively in any environment

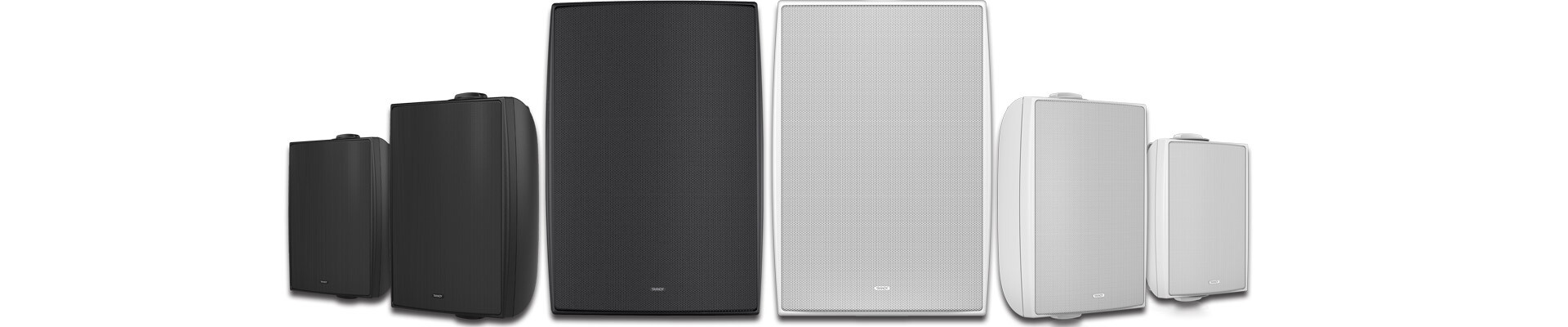

Tannoy DVS Series Surface Mount Speakers
The DVS Series surface mount loudspeakers with transformer are designed for installation applications
Designed to excel in a wide variety of sound reinforcement applications, the full range DVS Series are ultra-compact surface mount loudspeakers that provides both exceptional value and inspiring acoustic performance. The DVS Series is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. Able to deliver consistent performance under a wide range of adverse conditions the DVS is suited to applications indoors or out. Available in black or white the DVS will effectively blend into most backgrounds.
Attractive and Easy to Install
The Tannoy DVS series surface mount loudspeakers represent a pinnacle in installed sound audio technology, delivering exceptional sound quality in a sleek and versatile design. Engineered for both indoor and outdoor applications, these speakers feature cutting-edge acoustic technology to ensure clear and immersive audio reproduction. With a compact and robust build, the DVS Series is an exceptional choice for challenging environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.
TANNOY DVS 4
4" Coaxial Surface-Mount Loudspeaker
• Exceptional value and inspiring acoustic performance
• 40 Watts continuous, 160 Watts peak power
• Ideally suited for stereo or mono background/foreground music applications
• 110° constant directivity dispersion for optimum coverage
• UL 1480 certified for general signalling systems
• UV and weather resistant UL 94 V-0 ABS enclosure
TANNOY DVS 4T
4" Coaxial Surface-Mount Loudspeaker with Transformer
• Equipped with an internally mounted low insertion loss line transformer for 70V or 100V
• 4" mineral loaded polypropylene driver with nitrile rubber surround
• 40 Watts continuous, 160 Watts peak power
• For indoor and outdoor installation applications
• All components weather resistant to IP64 for outdoor use
• 0.75" ferrofluid cooled soft dome neodymium high frequency driver
TANNOY DVS 6
6" Coaxial Surface-Mount Loudspeaker
• Available in semi-matte black or white
• 60 Watts continuous, 240 Watts peak power
• 6" mineral-loaded polypropylene driver with nitrile rubber surround
• 90° constant directivity dispersion for optimum coverage
• UL 1480 certified for general signalling systems
• 6 Ohm direct input for low-impedance applications
TANNOY DVS 6T
6" Coaxial Surface-Mount Loudspeaker with Transformer
• Multiple transformer taps for 70 V and 100 V line systems
• Full-range surface-mount loudspeaker for indoor and outdoor installation applications
• Yoke bracket included for ease of installation
• All components weather resistant to IP64 for outdoor use
• UL 1480 certified for general signalling systems
• Painted perforated aluminum mesh grille with dust protection
TANNOY DVS 8
8" Coaxial Surface-Mount Loudspeaker
• 70 Watts continuous, 280 Watts peak power
• 8" mineral loaded polypropylene driver with nitrile rubber surround
• 0.75" ferrofluid cooled soft dome neodymium high frequency driver
• 80° constant directivity dispersion for optimum coverage
• UV and weather resistant UL 94 V-0 ABS enclosure
• Phoenix connectors input and link output
TANNOY DVS 8T
8" Coaxial Surface-Mount Loudspeaker with Transformer
• Equipped with an internally mounted low insertion loss line transformer for 70V or 100V
• 8" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
• 70 Watts continuous, 280 Watts peak power
• Low insertion loss 60 W line transformer with easily accessible tapping switch
• Multiple transformer taps for 70V and 100V line systems
• All components weather resistant to IP64 for outdoor use
