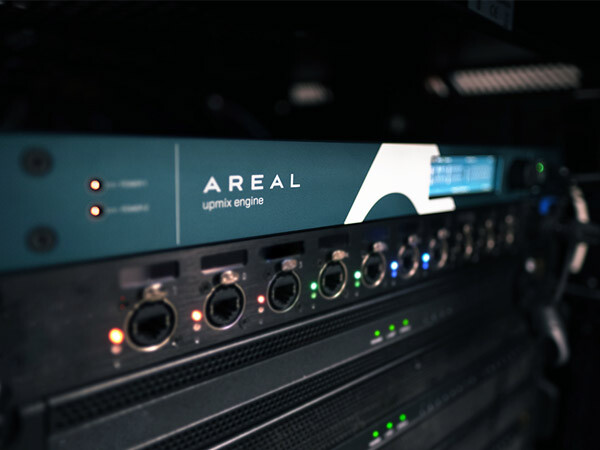

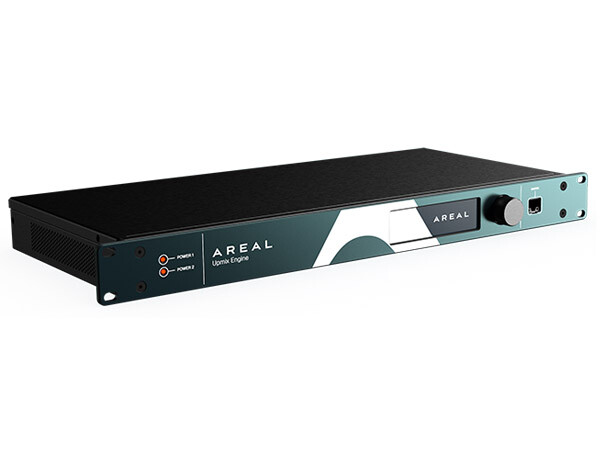

Areal Upmix Engine - Realtime Immersive Audio Upmix Processor for Stereo to 3D Spatial Sound (Dolby Atmos & Surround Compatible)

SKU: AUE25-D-UK

Be the first to write a review!

Out of Stock - Available to Order

Write a review

Advanced Real-Time Upmixer for Professional Immersive Audio Applications.

The Areal Upmix Engine converts stereo content into immersive multichannel audio in real-time, without altering the original mix. Powered by the RISE algorithm, the engine intelligently redistributes spectral elements across multiple channels, delivering rich immersive experiences without multitrack stems or object-based mixes.

LF Warp functionality enables reshaping of low-frequency imaging for enhanced bass control and impact. FocusField technology allows detailed definition and steering of the spatial image, adapting the focus to fit the application.

Featuring flexible Dante™, AES3, MADI, and balanced analog I/O connectivity, Upmix Engine is equipped for demanding live events and tours, performance venues, corporate events and broadcast scenarios.

KEY FEATURES
▸ Real-time stereo to immersive upmixing with low latency
▸ LF Warp low-frequency imaging control
▸ FocusField steering and shaping of immersive image
▸ DanteTM, MADI, AES, AVB*, and balanced analog I/O
▸ Upmix to 5.1 / 7.1 / 7.1.4 / custom arrays
▸ 12 configurable output channels
▸ Front-panel touchscreen and rotary
▸ Remote control via web UI and OSC (Ethernet)
▸ Redundant power and network options
▸ 19” Rackmount 1RU

APPLICATIONS
▸ Live events and touring
▸ Live venues
▸ Corporate events
▸ Broadcast

Sections

£17,700.00

Technical Specifications

  • AUDIO PERFORMANCE
  • Upmixing cores 2 configurable as Quad, Hexa, Octa or Spatial Di or Quad)
  • Sample Rate 48 / 96 kHz (selectable)
  • Bit Depth 24-bit
  • Latency (DSP core) < 9 ms (Analog in to Analogue out)
  • Dynamic Range > 118 dB
  • THD+N < 0.002% @ 1 kHz
  • Channel Processing 4 in / up to 12 out

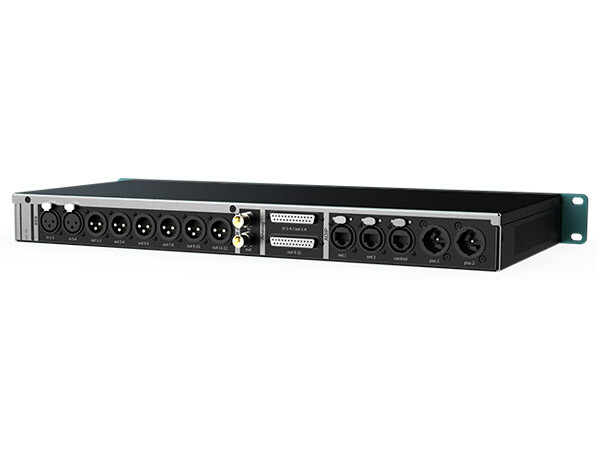

  • INPUTS (Selectable Routing Matrix)
  • Analogue Balanced 4 Channels (D-SUB)
  • AES3 4 Channels (2 x XLR)
  • Dante™ (AES67 compatible) 4 Channels (EtherCON Redundant)
  • AVB 4 Channels (EtherCON Redundant Shared with Dante)
  • MADI (optical or coaxial) 4 Channels (BNC)
  • Word Clock 1 (BNC Shared with Madi, selectable)
  • OUTPUTS (Assignable Routing Matrix)
  • Analogue Balanced Up to 12 Channels (D-SUB)
  • AES3 Up to 12 Channels (6 x XLR)
  • Dante™ Up to 12 Channels (EtherCON Redundant)
  • AVB Up to 12 Channels (EtherCON Redundant Shared with Dante)
  • MADI Up to 12 Channels (BNC)
  • Word Clock 1 (BNC Shared with Madi, selectable)
  • PROCESSING & CONTROL
  • Rise Upmix Algorithm Realtime Immersive Stereo Expansion
  • Presets 10 Default, 10 user-definable
  • Output Processing Full matrix with per-channel delay, gain, polarity & parametric EQ
  • Remote Control Web UI and OSC via Ethernet
  • Front Panel TouchScreen + rotary encoder
  • Status LEDs PSU 1, PSU2
  • POWER & MECHANICAL
  • Power Supply Dual redundant internal PSU (100–240 VAC)
  • Power Consumption < 28 W per PSU
  • Mounting 19” 1RU (standard)
  • Dimensions (W × D × H) 482 × 220 × 44 mm
  • Weight ~3.5 kg (7.72 lbs)
  • Operating Temp 0–45°C, fan-cooled
